Hughes ABS open bowl eye wash with diffuser covers and push panel activation

In stock

75GEW

Wall mounted ABS open bowl eye wash

$1.00

Select Optional Fittings (6 available)

Remote wireless alarm

Thermostatic mixing valve

Freeze protection valve

Scald protection valve

Pressure reducing valve

Handheld eye, face and body shower

Add to enquiry list

Call Us

Suitability

Indoors

Suitable for hazardous areas

Product Description

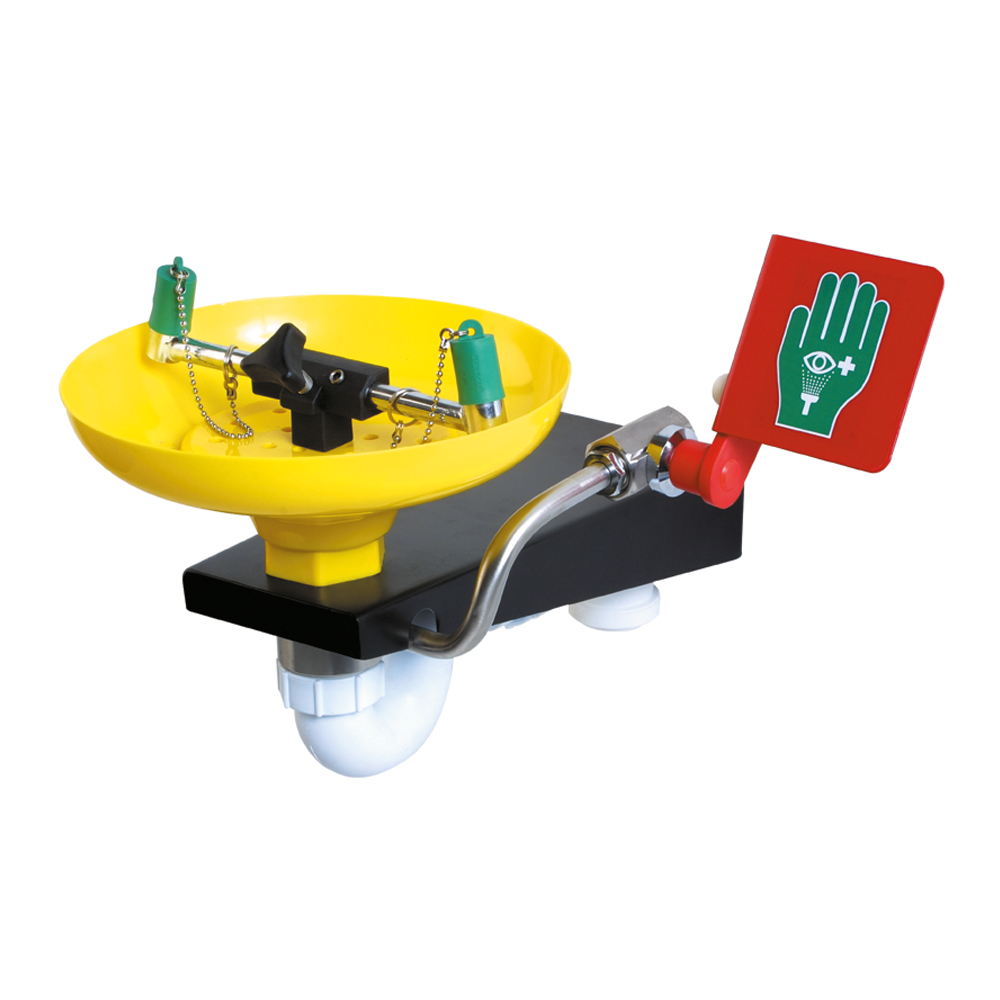

Wall mounted ABS open bowl eye wash

Essential for indoor locations in close proximity to potential hazards. The durable nature of the ABS bowl makes this wall mounted eye/face wash unit suitable for many industrial applications. Twin spray nozzles are fitted with covers to prevent contamination when not in use. Operation is simple either via the standard push plate or an optional foot treadle. Meets the requirements of ANSI Z358.1-2014.

Push plate activation lifts the protective dust covers from the spray nozzles
Optimal water flow can be managed using the flow regulator valve
3 US gallons per minute water flow with a gentle washing action
Certified by UL to meet the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Downloads

Industry Regulation Documents (1)

ANSI Z358.1-2014 Summary_HNA

(Size: 3.7 MB)

Installation & Maintenance Guide (3)

DE_Eyewash_Plumbedin_IOMI

(Size: 449.6 KB)

EN_Eyewash_PlumbedIn_IOMI

(Size: 378.2 KB)

NL_Eyewash_Plumbedin_IOMI

(Size: 418.7 KB)

Datasheets (2)

EN_75GEW Datasheet

(Size: 288.5 KB)

FR_75GEW Datasheet

(Size: 291.4 KB)
